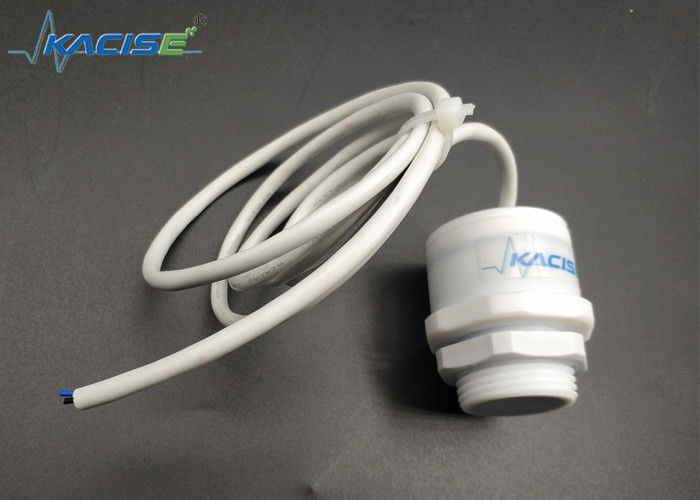

Προγραμματίσημη RS485 ρευστών επιπέδων υπερήχου παραγωγή μετρητών

Προγραμματίσημη RS485 ρευστών επιπέδων υπερήχου παραγωγή μετρητών

  • Προγραμματίσημη RS485 ρευστών επιπέδων υπερήχου παραγωγή μετρητών
  • Προγραμματίσημη RS485 ρευστών επιπέδων υπερήχου παραγωγή μετρητών
Προγραμματίσημη RS485 ρευστών επιπέδων υπερήχου παραγωγή μετρητών
Λεπτομέρειες:
Τόπος καταγωγής: ΚΙΝΑ
Μάρκα: kacise
Πιστοποίηση: CE
Αριθμό μοντέλου: KUS600
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 0-100
Τιμή: Negotiable
Συσκευασία λεπτομέρειες: Κοινή συσκευασία ή συσκευασία συνήθειας
Χρόνος παράδοσης: 3-10DAYS
Όροι πληρωμής: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Δυνατότητα προσφοράς: 100
Επικοινωνία
Λεπτομερής Περιγραφή Προϊόντος
Αισθαμένος σειρά: 400… 6000 χιλ. Σειρά ρύθμισης: 400….6000mm
Τυφλό σημείο: 0… 600 χιλ. Τυποποιημένο πιάτο στόχων: 100 χιλ. Χ 100 χιλ.
Συχνότητα μετατροπέων: approx.50 kHz Καθυστέρηση απάντησης: κα περ. 40
Υψηλό φως:

Μετρητής ρευστών επιπέδων υπερήχου

,

Προγραμματίσημος μετρητής ρευστών επιπέδων

,

RS485 μετρητής ρευστών επιπέδων

IP67 Protection Level Ultrasound Level Sonde Various Working Modes



There are 3 working modes,
1: automatic measurement mode, continuous measurement of liquid level sensor and a distance, the user at any time via the interface 485 to read the measurement results.
2: the user does not initiate a communication 485, the sensor will initiate a measurement and report the results.
3: Sleep mode, the product enters sleep mode, the user through the first wake-up sensor 485, and then initiate a measurement and obtain results in the sensor again before sleep.



Eight modes of operation of the sensor.
1: enabled by default window mode
2: Window mode is disabled by default
3: single-point mode is enabled by default
4: Single-point mode is disabled by default
5: single-point hysteresis mode is enabled by default
6: Single Point off by default hysteresis mode
7: presence detection mode is enabled by default
8: presence detection mode is turned off by default



Switching point, Setting distance only after power on. The internal clock can assure can't be



Product features


    High sensitivity
    Small size
    IP67 protection level
    Corrosion-resistant shell, suitable for corrosive media and applications



Sensor Commands



Each command has a total of 6(or 8)bytes, and all sensor commands are sent and displays by HEX. The sensor ID Tag uses 01 as an example



LED displays
    Programming time Working time
Red LED ON -- Error accured
OFF Working well Working well
Flash

Doing the echo lost program,

For Single switching point, program, or Detection of object.

-----
Yellow LED ON ---- Object detacted
OFF ------ Echo lost
Flash

Teach in for the status ready,

That means the sensor has locked the set distance for program

-----
Blue LED ON Power on Power on
OFF Power off Power off
Flash

Program period indication,

Only the blue led flashes the program routine can be done

Program can be carried on





Output type

1 switch output E4, NPN NO/NC, programmable

2 switch output E4, PNP NO/NC, programmable

3 Analog 0-10V output E4 programmable.

4 Analog 4-20mA output E4 programmable

5 RS485 output E4 programmable.

Rated operating current Ie 200 mA , short-circuit/overload protected
Default setting Switching point A1:150mm Switching point A2: 1000mm
Voltage drop ≤ 2.5 V
Repeat accuracy ≤1 %
Switching frequency f ≤ 13 Hz(customized for high frequency version)
Range hysteresis H 5 % of the set operating distance
Temperature influence ±1.5% of full-scale value

Ambient conditions



Ambient temperature -25…70℃(248...343K)
Storage temperature -40…85℃(233...358K)

Mechanical specifications



Connection V1 connector(M12×1),4-pin
Protection degree IP67
Material Housing brass, nickel-plated
Transducer

epoxy resin/hollow glass sphere mixture;

foam polyurethane, cover PBT
