Name: Differential pH and ORP Sensor with 2-14 pH Range -1500 to 1500 mV ORP and 0 to 105°C Temperature for Water Quality Monitoring
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: FU20-FS
Price: 5,000.00 USD
Availability: InStock

Σπίτι > προϊόντα > αισθητήρας ποιότητας νερού >

Differential pH and ORP Sensor with 2-14 pH Range -1500 to 1500 mV ORP and 0 to 105°C Temperature for Water Quality Monitoring

pH Range 2-14 Differential pH and ORP Sensor

ORP Range -1500 to 1500 mV Water Quality Sensor

Temperature Range 0 to 105°C Cation Differential Sensor

Μάρκα:

Yokogawa

Αριθμό μοντέλου:

FU20-FS

Επικοινωνήστε μαζί μας

Ζητήστε μια προσφορά

Differential pH and ORP Sensor with 2-14 pH Range -1500 to 1500 mV ORP and 0 to 105°C Temperature for Water Quality Monitoring

Λεπτομέρειες για το προϊόν

Θεωρία μέτρησης:

Κατιόν

Εύρος pH:

2-14

Σειρά ORP:

-1500 έως 1500 mV

Κλίμακα θερμοκρασίας:

0 έως 105 ° C (14 έως 221 ° F)

Επισημαίνω:

pH Range 2-14 Differential pH and ORP Sensor

ORP Range -1500 to 1500 mV Water Quality Sensor

Temperature Range 0 to 105°C Cation Differential Sensor

Όροι πληρωμής και αποστολής

Ποσότητα παραγγελίας min

1 PCS

Συσκευασία λεπτομέρειες

Κάθε μονάδα διαθέτει μεμονωμένο κουτί και όλα τα κουτιά είναι συσκευασμένα σε τυπικά πακέτα ή διαθέσ

Χρόνος παράδοσης

5-8 εργάσιμες ημέρες

Όροι πληρωμής

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Δυνατότητα προσφοράς

1000 κομμάτια/κομμάτια ανά εβδομάδα διαπραγματεύσιμα

Συγγενικά προϊόντα

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Βρείτε την καλύτερη τιμή

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Βρείτε την καλύτερη τιμή

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Βρείτε την καλύτερη τιμή

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Βρείτε την καλύτερη τιμή

Επικοινωνήστε μαζί μας

86--17719566736

Επικοινωνήστε τώρα

Περιγραφή του προϊόντος

Differential pH and ORP Sensors

Yokogawa's cation differential pH and ORP sensors are engineered for challenging applications where conventional sensors fail. These specialized sensors excel in diverse environments ranging from brine solutions to electrolysis processes and cheese manufacturing.

Common measurement challenges in these applications typically stem from reference cell issues, including:

High diffusion potentials at the reference junction
Elevated temperatures (common in chlorinated brine processes)
High ground-loop currents

Our differential sensors feature a sealed glass reference system with no liquid junction or process-exposed electrolyte. This innovative design eliminates diffusion potentials and fouling, ensuring stable measurements with minimal maintenance requirements.

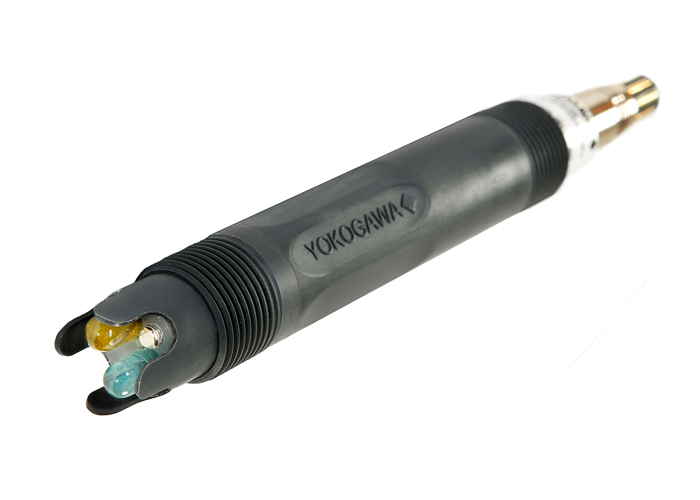

FU20-FTS Differential Sensor

FU20-FTS

The FU20-FTS represents Yokogawa's latest advancement in pH sensor technology, combining the precision of our 12mm differential sensor with the durability of our renowned FU20 wide-body design.

While Yokogawa utilizes proven silver/silver chloride reference cells for cost-effective performance across most applications, our differential technology provides superior longevity in demanding conditions. Conventional sensors require frequent maintenance to prevent reference poisoning, whereas differential sensors offer significant advantages in high-temperature, high-pressure industrial applications.

Key Advantages

No junction - eliminates junction-related failures
Completely sealed design prevents process contamination
Eliminates reference element poisoning
No diaphragm - prevents plugging or coating issues
No electrolyte outflow - prevents depletion problems

FU20-FTS Specifications
Measurement Theory	Cation Reference
pH Range	2-14
ORP Range	-1500 to 1500 mV
Temperature Range	0 to 105°C (14 to 221°F)
Pressure Range	0 to 10 bar (0 to 145 PSIG) @ 25°C 0 to 5 bar (0 to 72 PSIG) @ 105°C
