Name: Industrial pH/ORP Electrode Water Quality Sensor with Wide Measuring Range High Temperature and Pressure Resistance
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: SC29
Price: 5,000.00 USD
Availability: InStock

Σπίτι > προϊόντα > αισθητήρας ποιότητας νερού >

Industrial pH/ORP Electrode Water Quality Sensor with Wide Measuring Range High Temperature and Pressure Resistance

Wide measuring range pH/ORP Electrode

High temperature range Water Quality Sensor

High pressure resistance Industrial Electrode

Μάρκα:

Yokogawa

Αριθμό μοντέλου:

SC29

Επικοινωνήστε μαζί μας

Ζητήστε μια προσφορά

Industrial pH/ORP Electrode Water Quality Sensor with Wide Measuring Range High Temperature and Pressure Resistance

Λεπτομέρειες για το προϊόν

Εύρος μέτρησης::

-1500 ... 1500mv

Εύρος θερμοκρασίας::

-10 έως 100 °C

Κλίμακα πίεσης:

1,5 kPa ... 500 kPa

Μεμβράνη:

Στερεό κύπελλο πλατίνας

Διάφραγμα:

Πορώδες PTFE

Επισημαίνω:

Wide measuring range pH/ORP Electrode

High temperature range Water Quality Sensor

High pressure resistance Industrial Electrode

Όροι πληρωμής και αποστολής

Ποσότητα παραγγελίας min

1 PCS

Συσκευασία λεπτομέρειες

Κάθε μονάδα διαθέτει μεμονωμένο κουτί και όλα τα κουτιά είναι συσκευασμένα σε τυπικά πακέτα ή διαθέσ

Χρόνος παράδοσης

5-8 εργάσιμες ημέρες

Όροι πληρωμής

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Δυνατότητα προσφοράς

1000 κομμάτια/κομμάτια ανά εβδομάδα διαπραγματεύσιμα

Συγγενικά προϊόντα

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Βρείτε την καλύτερη τιμή

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Βρείτε την καλύτερη τιμή

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Βρείτε την καλύτερη τιμή

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Βρείτε την καλύτερη τιμή

Επικοινωνήστε μαζί μας

86--17719566736

Επικοινωνήστε τώρα

Περιγραφή του προϊόντος

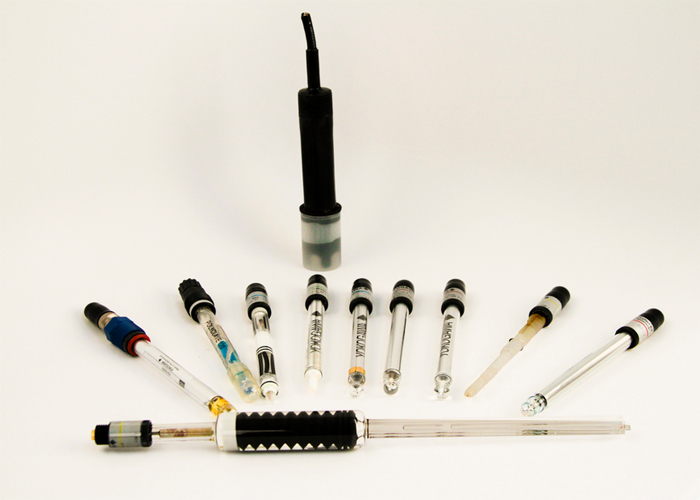

Industrial pH/ORP Electrodes

The heart of a pH measuring loop is the electrode system. Yokogawa has designed a wide range of electrodes to ensure reliable performance under the most severe industrial conditions. These electrodes meet DIN 19263 standards (excluding refillable types) and feature high standardization for compatibility with standard fittings. Color-coded strips on electrodes and cables prevent incorrect installation.

Key Features

Comprehensive electrode selection for all process conditions
Gold-plated spring connectors ensure excellent electrical contact
Coaxial plug and socket with IP65-rated watertight sealing
Color-coded identification system for easy installation
Standardized design for mounting in flow- and immersion fittings

Technical Specifications

SC29(C) Series Models

Model	Specifications
SC29(C)-PT29	Combined reference/reference electrode (Non-flow type) Measuring range: -1500...1500mV Temperature range: -10 to 100°C Pressure range: 1.5 kPa...500 kPa Membrane: Solid Platinum cup Diaphragm: Porous PTFE (Impedance <5 kΩ) Reference system: Ag/AgCl Saturated KCl
SC29(C)-PT55	Combined reference/reference electrode (Flow type) Temperature range: -10 to 100°C Pressure range: 1.5 kPa...500 kPa Membrane: Solid Platinum cup Diaphragm: Ceramic (Impedance <5 kΩ) Reference system: Ag/AgCl 3.3m KCl
SC29-PtG29	Combined reference/glass electrode Temperature range: 0 to 100°C Pressure range: 1.5 kPa...1000 kPa Membrane: Solid Platinum Glass: General purpose pH glass

Shipping Details

Model	Package Size	Weight
SC21(C), SC29(C)	1204545 mm (10.621 in)	0.08 kg (0.17 lbs)
SC21(C-AGESS, SC29C-PT55	3009573 mm (11.83.72.9 in)	0.22 kg (0.48 lbs)

Environmental Conditions

Storage temperature: -10 to +50°C (14 to 122°F). For long-term storage of unused electrodes, completely fill with electrolyte solution, close the refill opening, and fit the protective cap with a small piece of membrane filled with water.

Regulatory Compliance

CE: Compliant with RoHS Directive 2011/65/EU and Commission Delegated Directive (EU) 2015/863

Standards: EN-IEC 63000:2018 for technical documentation and hazardous substance assessment

UKCA: Compliant with The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
