Περιγραφή του προϊόντος

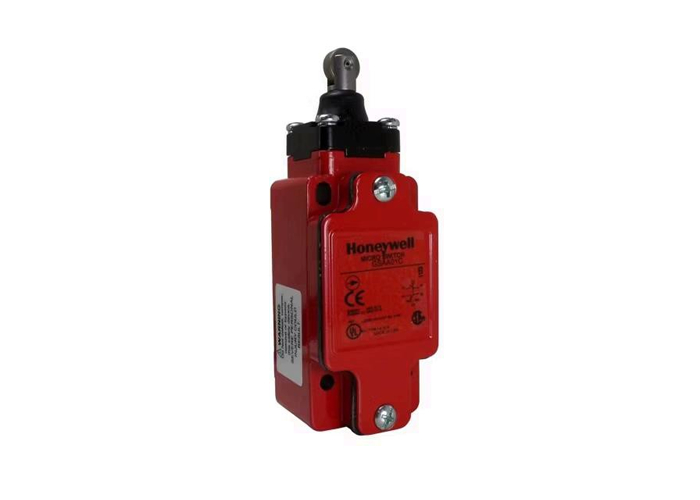

Honeywell GSS Series EN50041 and EN50047 Mounting

Product Overview

Honeywell's GSS Series electromechanical safety switches are designed to EN50041 or EN50047 standards, featuring metal or plastic housing options with UL, CSA, CE, and SIL3 certifications. These switches offer silver and gold contacts for various applications.

Key Features

Positive opening normally closed contacts for enhanced safety
Red body color for immediate safety recognition
Epoxy coated metal zinc housing (GSA, GSC, GSE Series) or glass-reinforced thermoplastic (GSD Series)
Multiple actuator head options: pin plunger, roller plunger, side rotary levers, hinge lever
Wide selection of NC (normally closed) and NO (normally open) contact configurations
Global threaded conduit options for international applications

Customer Benefits

90° rotatable operating heads for installation flexibility
All NC contacts feature positive opening mechanism when actuated
Removable contact blocks simplify wiring processes
Environmentally sealed for indoor/outdoor applications
CE, CSA, and UL certified for global compliance
SIL3 capable for high-safety applications (GSA and GSD Hinge Lever)

Technical Specifications

Characteristic	Parameter
Description	GSA Safety Switch Series: EN50041 mounting (30 mm x 60 mm) GSC/GSD/GSE Safety Switch Series: EN50047 mounting (20 mm to 22 mm)
Certifications	CE; DOC # 231, EN/IEC 60947-5-1 CSA; File 57323, CSA C22.2 No. 14 UL; File E37138, UL508
Housing material	GSA/GSC/GSE Series: electrostatic epoxy coated die-cast zinc GSD Series: high strength glass-filled thermoplastic
Actuator heads	GSA Series: Side rotary, top pin plunger, top roller plunger, top roller lever GSC/GSD/GSE Series: hinge lever positioned at left, top, or right position
Conduit/electrical connection	0.5-14 NPT; 20 mm; PG 13,5; G1/2 (PF1/2) GSE Series has three (3) threaded conduits
Contact/switch options	GLA & GLE Series: 1NC/1NO, 2NC, 2NC/2NO, 3NC/1NO, 4NC GLC & GLD Series: 1NC/1NO, 2NC All normally closed (NC) contacts are positive opening
Contact material	Silver alloy (standard), gold-plated (low energy applications)
Rated operational voltage	240 Vac, 600 Vac, 250 Vdc
Environmental sealing	GSA Series (metal body): IP67, NEMA 1, 4, 12, and 13 GSC & GSE Series (metal body): IP66, NEMA 1, 4, 12, and 13 GSD Series (plastic body): IP66/67, NEMA 1, 4X (indoor), 12, and 13
Operating temperature	GSA Series with side rotary actuator head: -40°C to 85°C GSA Series without side rotary actuator head: -25°C to 85°C GSC/GSD/GSE Series: -25°C to 85°C
Mechanical life	GSA Series: >1,000,000 cycles GSD Series (hinge lever actuator): >1,000,000 cycles
SIL capability	GSA & GSD Series (hinge lever actuator); IEC 61508-2:2010; SIL2 capable with HFT=0; SIL3 capable with HFT=1

Applications

Ideal for safety applications in:

Agricultural and construction equipment
Die cast machinery
Elevators and escalators
Machine tools
Material handling systems
Packaging machinery
Plastic molding equipment
Scissor/platform lifts
Special purpose machinery

Product Differentiation

Up to four electrically independent contacts for control and monitoring
Gold contacts available for low energy applications
Dual bearing design in side rotary actuator for increased lifespan
Specialty sequential action contact option (GSA Series)
SIL3 capable per IEC 61508-2:2010 (GSA Series and GSD Hinge Lever Series)
