EchoMax XRS-5 Ultrasonic Transducer

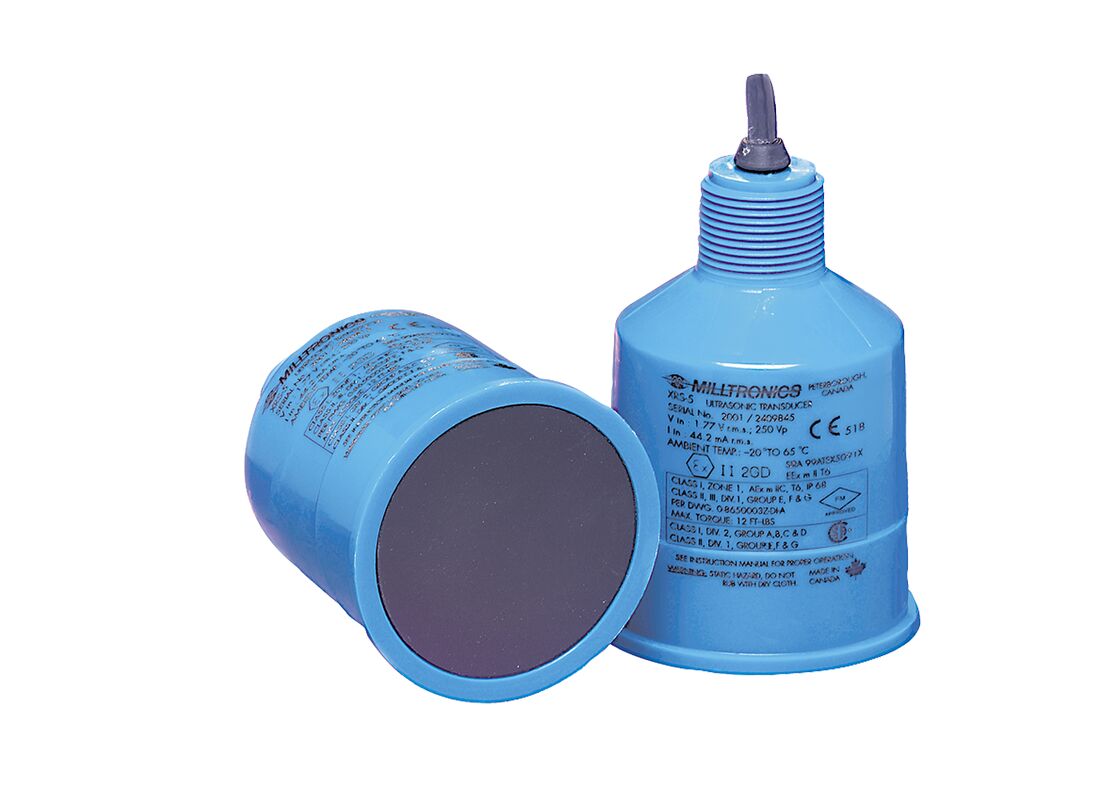

The EchoMax XRS-5 ultrasonic transducer provides reliable, continuous level monitoring of liquids and slurries in narrow lift stations/wet wells, flumes, weirs and filter beds using a beam angle of just 10° and a CSM rubber face.
Product Models
| Part Number |
Description |
| 7ML1105-.....-.. |
ECHOMAX XRS-5C TRANSDUCER |
| 7ML1106-.....-.. |
ECHOMAX XRS-5 TRANSDUCER |
Accessories & Components
| Part Number |
Description |
| 7ML1830-1AQ | EASY AIMER II, ALUMINUM, 3/4 INCH NPT WITH 3/4 - 1 INCH PVC COUPLING |
| 7ML1830-1BL | CHANNEL BRACKET, WALL MOUNT, FMS-210 |
| 7ML1830-1BM | EXTENDED CHANNEL BRACKET, WALL MOUNT FMS-220 |
| 7ML1830-1BN | CHANNEL BRACKET, FLOOR MOUNT FMS-310 |
| 7ML1830-1BP | EXTENDED CHANNEL BRACKET, FLOOR MOUNT, FMS-320 |
| 7ML1830-1BQ | BRIDGE CHANNEL BRACKET, FLOOR MOUNT, FMS-350 |
| 7ML1830-1AU | EASY AIMER II, 304, FLANGE WITH NPT THREAD, W/CPLNG, 1 INCH |
| 7ML1830-1AX | Easy Aimer II Flange, Aluminum with M20 Adapter, 1" and 1-1/2" BSP aluminum coupling |
| 7ML1830-1BH | SHIELD, SUBMERGENCE, KIT, for XPS10/XRS-5 sensors |
| 7ML1830-1BK | UNIVERSAL BOX BRACKET, FMS-200 |
| 7ML1830-1DN | LOCKNUT, 1"BSP, FLANGED, PLASTIC |
| 7ML1830-1DR | Locknut, 1" BSP, plain |
| 7ML1830-1DS | LOCKNUT, 1"NPT, PLASTIC |
| 7ML1830-1EA | ADAPTER 1" BSP - 20MM |
| 7ML1830-1EF | ADAPTER 1"NPT/M20 |
| 7ML1830-1GN | Easy Aimer adapter Kit, 304, M20 to 1"NPT, 1"NPT to 1"BSP, 1"NPT to 1.5"BSP |
| 7ML1930-1BJ | TAG, stainless steel, comes with hole, 12 X 45MM, one text line |
| 7ML1930-1FX | KIT, ISOLATION, 1" NPT, XDUCERS |
Key Benefits
- Narrow beam angle of only 10°
- Chemically resistant PVDF copolymer enclosure and CSM rubber face
- Measuring range: 8 m (26 ft) for measurement of liquids and slurries
- Fully submersible: IP68 degree of protection
- Easy installation with 1" NPT or R 1" BSPT connection
Applications
The XRS-5 is non-contacting with a measuring range from 0.3 to 8 m (1 to 26 ft). Advanced echo processing ensures reliable data even in conditions with obstructions, turbulence, and foam.
The hermetically sealed CSM rubber face and the PVDF copolymer enclosure are designed for maximum resistance to methane, salt water, caustics, and harsh chemicals common to wastewater installations. With an IP68 degree of protection, this rugged sensor is fully submersible in the event of flood conditions. Use a submergence shield if full submergence is possible in the application. A submergence shield will maintain a high level reading output during submerged conditions.
The low-cost XRS-5 transducer is compatible with a full range of Siemens controllers, from a basic system for high/low alarm or simple pump control, up to advanced control systems with communications, telemetry and SCADA integration capabilities.
Key Applications:
Wet wells, flumes, weirs, filter beds
Technical Specifications
Mode of operation
Ultrasonic transducer
Measuring principle
Ultrasonic transducer
Measuring range
0.3 ... 8 m (1 ... 26 ft), dependent on application
Temperature error
Compensated by integral temperature sensor
Vessel pressure
Normal atmospheric pressure
Ambient temperature
-20 ... +65 °C (-4 ... +149 °F)
Storage temperature
-20 ... +65 °C (-4 ... +149 °F)
Weight (approximate shipping weight)
1.2 kg (2.6 lb)
Material (enclosure)
PVDF copolymer enclosure and CSM face
Material (flange)
CPVC (Option: PTFE face with CPVC flange)
Process connection
1" NPT [(Taper), ANSI/ASME B1.20.1] or R 1" [(BSPT), EN 10226]
Degree of protection
IP65/IP68
Cable connection
2-core shielded/twisted, 0.5 mm2 (20 AWG), PVC sheath
Cable (max. length)
365 m (1,200 ft) with RG 62 A/U coaxial cable or 2-core twisted pair, foil shield, 0.5 mm2 (20 AWG), PVC sheath (only for MultiRanger 100/200)
Options & Certifications
Flange version
Factory flange with PTFE face for ASME, EN or JIS configuration
Submergence shield
For applications with flooding possible
Certifications & Approvals
CE, UKCA, RCM, KC, EAC Ex CSA Class I, Div. 2, Groups A, B, C, D, Class II, Div. 1 Groups E, F, G FM Class I, Zone 1, AEx m IIC, T6 Class II, III, Div. 1, Groups E, F, G T6 ATEX II 2GD / UKEX II 2GD / IECEx / INMETRO Ex mb IIC T6 Gb, Ex tb IIIC T85°C Db VLAREM II
RoHS, China RoHS, WEEE, REACH, NSF/ANSI/CAN 61- 20221) 1) Available on orders supplied from Canada only. Environmental Product Declaration (EPD) Kazakhstan Metrology
